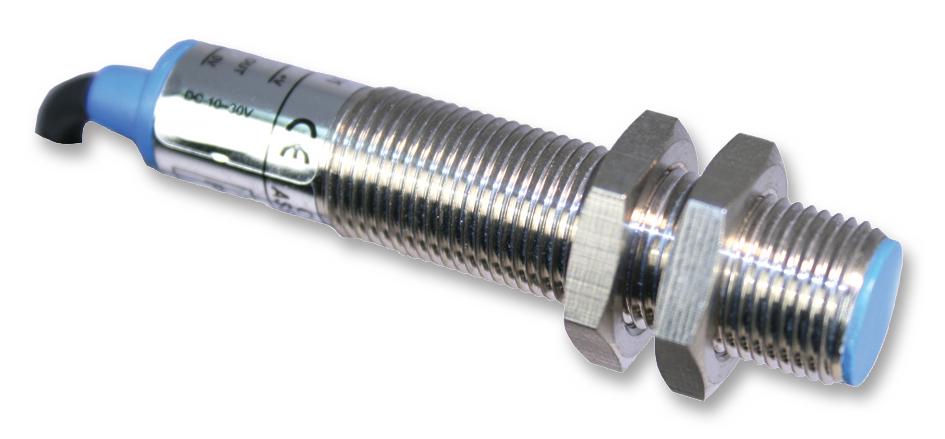

The term “M12 PNP NC JG” seems to refer to a specific type of M12 connector with certain characteristics:
- M12: This indicates the type of connector, which is a circular connector with a 12 mm locking thread.
- PNP: This refers to the type of transistor logic used in the sensor. PNP sensors source current to the load, meaning they provide a positive voltage to the output when activated.
- NC: This stands for “Normally Closed,” indicating the default state of the sensor’s output. In a normally closed sensor, the circuit is complete (closed) when the sensor is not activated.
- JG: This could be a manufacturer-specific code or part of the model number, which might indicate additional features or specifications.
Non-returnable
Out of stock
₹250.00
Product Details
Product Details
Product Details
- Housing: Metric, standard design with a thread size of M12 x 1 and a diameter of 12 mm.
- Sensing Range: 8 mm with a safe sensing range of 6.48 mm.
- Switching Frequency: 2,000 Hz.
- Connection Type: Male connector M12, 4-pin.
- Switching Output: PNP with complementary output function.
- Electrical Wiring: DC 4-wire.
- Enclosure Rating: IP68 and IP69K, making it resistant to cleaning agents and suitable for hygienic and washdown zones.
