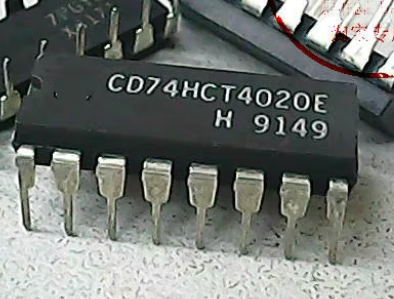

The 74HCT4020E is a 14-stage binary ripple counter. It is part of the high-speed CMOS (HCT) family, which is compatible with low-power Schottky TTL (LSTTL). This device is used for applications that require counting, timing, or frequency division.
Non-returnable
₹40.00
Product Details
Product Details
Product Details
Counter Type: 14-stage binary ripple counter
Logic Family: High-speed CMOS (HCT), pin compatible with low-power Schottky TTL (LSTTL)
Supply Voltage: 4.5V to 5.5V
Operating Temperature Range: -40°C to 125°C
Output Capability: Standard output, capable of driving 10 LSTTL loads
Clock Input: Negative-edge triggered
Reset Function: Common reset input to clear all stages.
