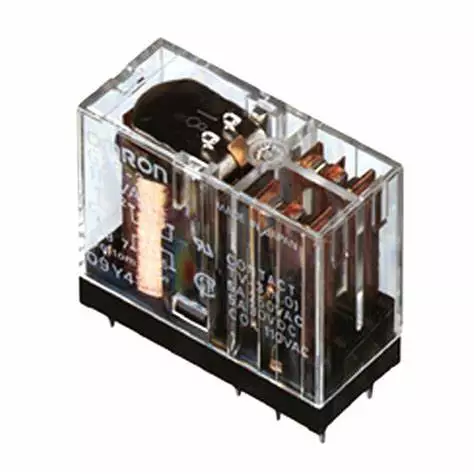

The G2R-1-24VDC is a general-purpose relay from Omron.
G2R-1: This indicates the series and model of the relay. The G2R series is known for its general-purpose relays.
24VDC: This specifies the coil voltage, meaning the relay operates with a 24V DC power supply.
Non-returnable
₹120.00
Product Details
Product Details
Product Details
Contact Form: SPDT (Single Pole Double Throw), which means it has one input and can connect to one of two outputs.
Contact Rating: 10A at 250V AC (resistive load), 7.5A at 250V AC (inductive load), 10A at 30V DC (resistive load), 5A at 30V DC (inductive load).
Maximum Switching Voltage: 440V AC, 125V DC.
Power Consumption: Approximately 0.53W.
Operating Temperature Range: -40°C to 70°C.
Mounting Type: Through-hole.
Contact Material: Silver alloy.
