The MAX4614/MAX4615/MAX4616 quad, low-voltage, high-speed, single-pole/single-throw (SPST) analog switches are pin compatible with the industry-standard 74HC4066/MAX4610 analog switches. On-resistance (10Ω max) is matched between switches to 1Ω max and is flat (1Ω max) over the specified signal range.
Non-returnable
₹250.00
Product Details
Product Details
Product Details

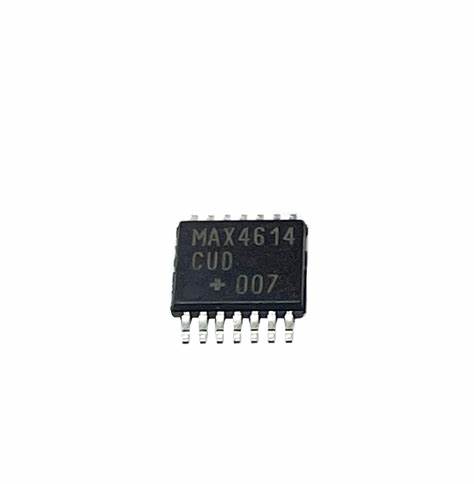

MAX4614
- Fast Switching Times 12ns t ON, 10ns t OFF
- Pin Compatible with Industry-Standard 74HC4066/MAX4610
- Guaranteed On-Resistance 10Ω max (+5V supply) 20Ω max (+3V supply)
- Guaranteed Match Between Channels (1Ω max)
- Guaranteed Flatness Over Signal Range (1Ω max)
- < 6nA Off-Leakage Current Over Temperature (T A = +85°C)
- Rail-to-Rail ® Signal Handling
- TTL/CMOS-Logic Compatible
