The 74LS32 IC performs the logical OR operation on two input signals and produces an output based on the truth table of an OR gate. The OR gate is one of the fundamental building blocks of digital circuits and is used to combine multiple input signals. Each gate within the 74LS32 has two inputs (A and B) and one output (Y).
Non-returnable
₹30.00
Product Details
Product Details
Product Details

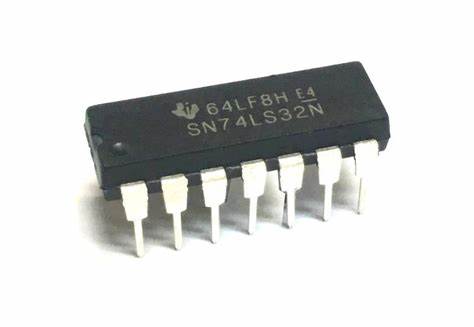

The 74LS32 is a quad 2-input OR gate integrated circuit (IC) in a dual in-line package (DIP). Here are some key features:
- Package Type: Standard 14-pin DIP.
- Power Supply: Operates with a supply voltage (Vcc) of 4.75V to 5.25V.
- Inputs and Outputs: Contains four independent OR gates, each with two inputs and one output.
- Pin Configuration:
- Pin 7: Ground (GND)
- Pin 14: Positive supply voltage (Vcc)
- Drive Strength: Can drive up to 16mA.
- TTL-Compatible Inputs: Designed to interface with TTL logic levels.
