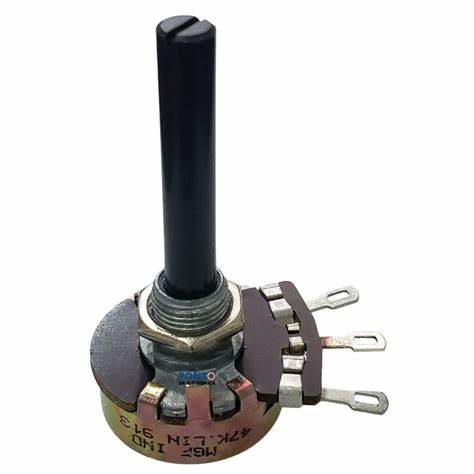

A 47k potentiometer (often abbreviated as “pot”) is a type of variable resistor with a resistance value of 47,000 ohms. It is used to adjust levels in electronic circuits, such as volume controls in audio equipment. The 23mm specification likely refers to the physical size or the mounting dimensions of the potentiometer.
Non-returnable
₹40.00
Product Details
Product Details
Product Details
The 47k Ohm potentiometer you’re referring to, specifically the 23mm model from Alkon, has several notable features:
- Resistance: 47k Ohms
- Power Rating: 0.4W
- Tolerance: ±20%
- Taper: Linear
- Mounting Type: Panel Mount
- Termination Style: Solder Lug
- Actuator Type: Flatted
- Actuator Length: 50.00mm (1.969 inches)
- Actuator Diameter: 6.35mm (0.250 inches)
- Rotation: 300°
