The term “Pankaj 10k 3w” likely refers to a Pankaj 10K Ohm 3W Wire Wound Potentiometer. This is a type of variable resistor used to control electrical devices. Here’s a brief breakdown:
- Pankaj: The brand name of the potentiometer.
- 10K: The resistance value, which is 10,000 ohms.
- 3W: The power rating, which is 3 watts.
Non-returnable
Out of stock
₹80.00
Product Details
Product Details
Product Details

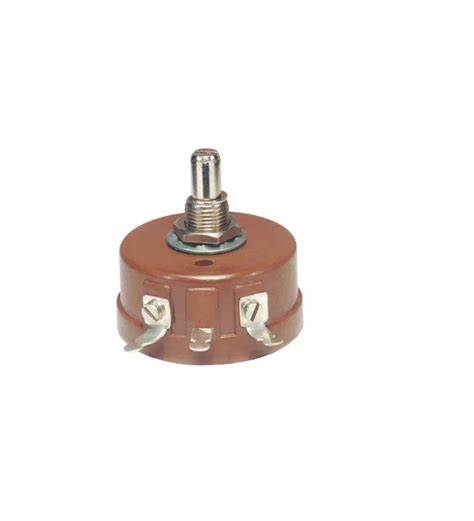

The Pankaj 10K 3W potentiometer, specifically the model R.W-3, is a single-turn wire-wound potentiometer known for its reliability and precision. Here are some of its key features:
- Resistance Range: 25Ω to 25KΩ
- Power Rating: 1 Watt at 40°C
- Maximum Working Voltage: 250VDC
- Insulation Resistance: 200MΩ at 500VDC
- Temperature Range: 0°C to 70°C
- Rotational Life Expectancy: 20,000 cycles at 15 RPM
