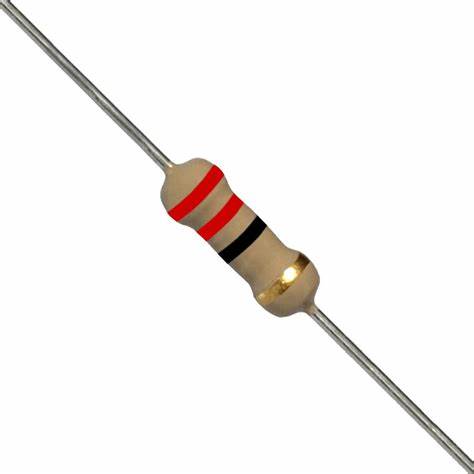

A 22 ohm (22Ω) 1/4 watt (0.25W) resistor is a type of electronic component used to limit the flow of electric current in a circuit. Here’s a brief breakdown:
- Resistance (22Ω): This indicates the resistor’s ability to resist the flow of electric current. A 22 ohm resistor will reduce the current flow by a specific amount according to Ohm’s Law.
- Power Rating (1/4W): This specifies the maximum amount of power the resistor can dissipate without being damaged. A 1/4 watt resistor can safely dissipate 0.25 watts of power.
Non-returnable
Out of stock
₹1.00
Product Details
Product Details
Product Details
A 22 ohm (22E) 1/4 watt resistor has several key features:
- Resistance Value: 22 ohms
- Power Rating: 1/4 watt (0.25 watts)
- Tolerance: ±5%, meaning the actual resistance can vary within 5% of the specified value
- Type: Typically a carbon film or metal film resistor
- Mounting Type: Through-hole, with axial leads
- Temperature Coefficient: Usually around 0 to -500 ppm/°C
- Operating Temperature Range: -55°C to 155°C
- Dimensions: Approximately 2.3mm in diameter and 6.0mm in length
