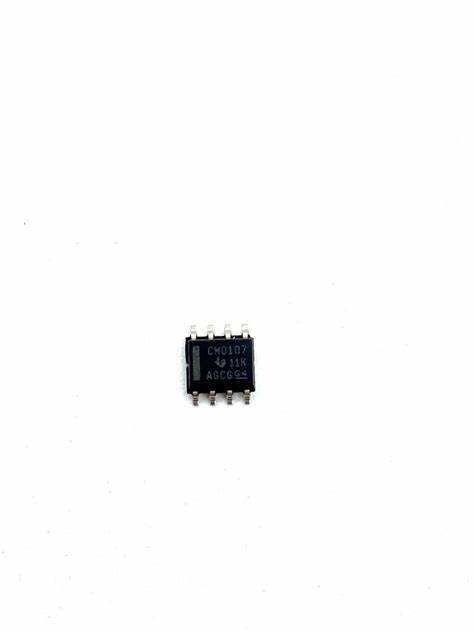

The CD40107B is a dual 2-input NAND buffer/driver IC. It contains two independent 2-input NAND buffers with open-drain single n-channel transistor outputs.
Non-returnable
₹25.00
Product Details
Product Details
Product Details
features :-
- Dual 2-input NAND buffers: Contains two independent 2-input NAND buffers.
- Open-drain single n-channel transistor outputs: Allows for wired-OR capability.
- High output sink current capability: Typical 136 mA at VDD = 10 V, VDS = 1 V.
- Wide operating voltage range: From 3 V to 18 V.
- Package options: Available in various packages including 8-lead hermetic dual-in-line ceramic, plastic, small-outline, and thin shrink small-outline packages.
- Temperature range: Operates from -55°C to 125°C.
