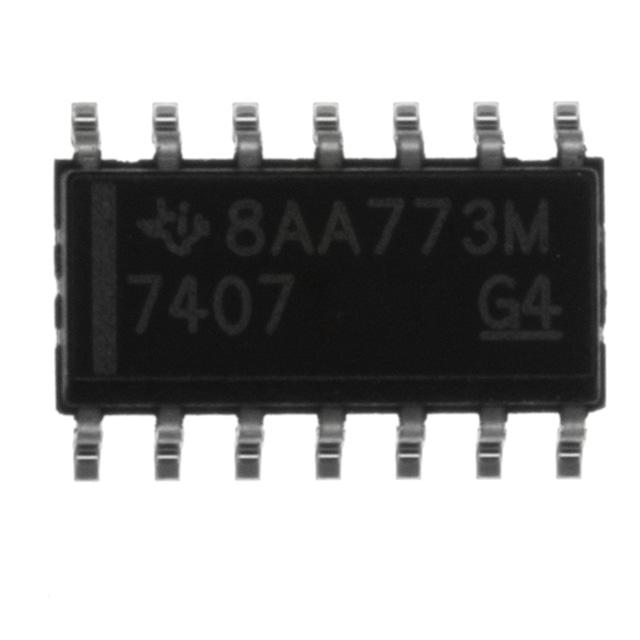

These hex buffers/drivers feature high-voltage open-collector outputs to interface with high-level
circuits or for driving high-current loads. They are also characterized for use as buffers for driving TTL inputs. The ’LS07 devices have a rated output voltage of 30 V, and the SN74LS17 has a rated output voltage of 15 V. The maximum sink current is 30 mA for the SN54LS07 and 40 mA for the SN74LS07 and SN74LS17.
Non-returnable
₹30.00
Product Details
Product Details
Product Details
- Convert TTL Voltage Levels to MOS Levels
- High Sink-Current Capability
- Input Clamping Diodes Simplify System Design
- Open-Collector Driver for Indicator Lamps and Relays
