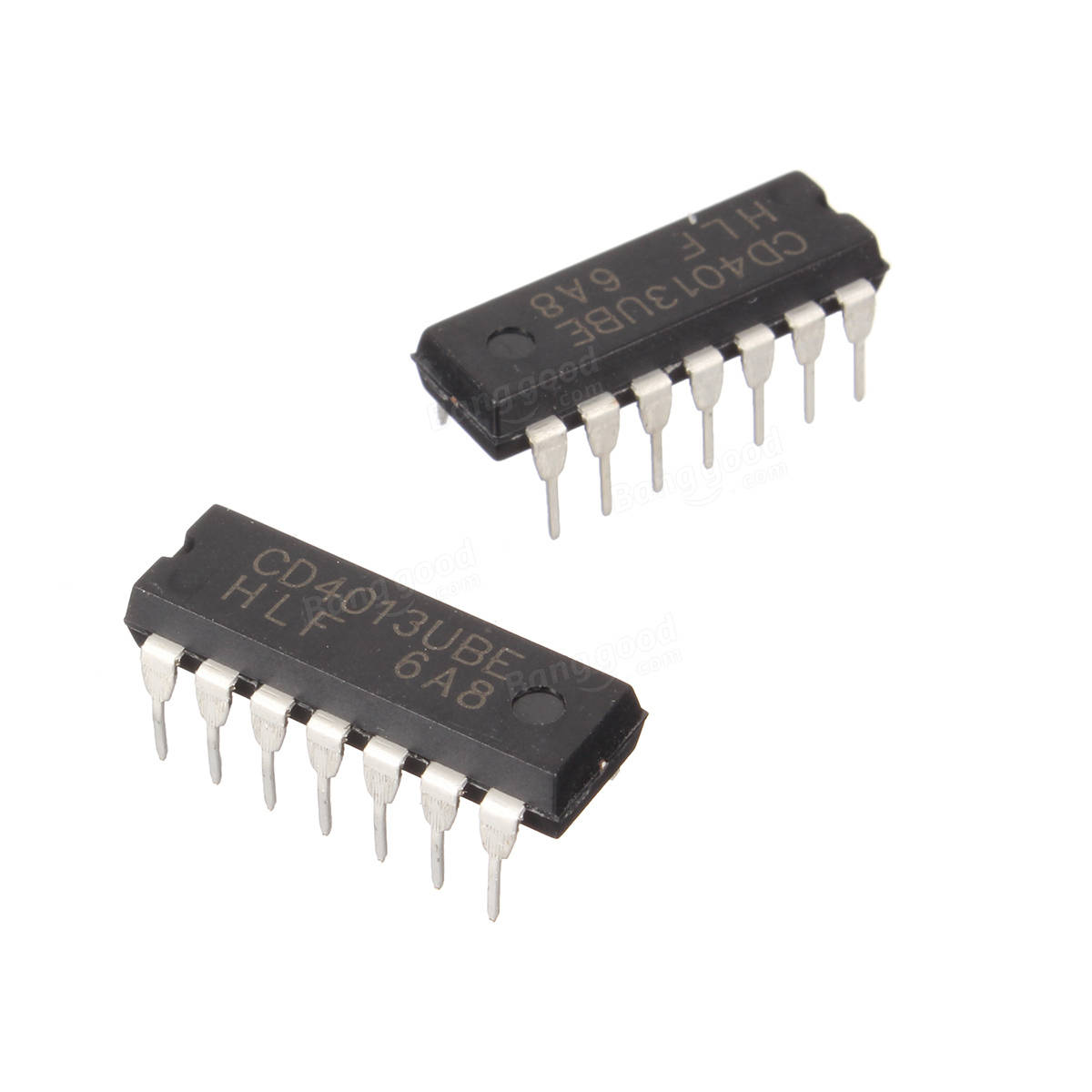

The CD4013 is a CMOS Dual D-Type Flip-Flop, which is a type of integrated circuit. It consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs, as well as Q and Q outputs.
Non-returnable
₹15.00
Product Details
Product Details
Product Details
Asynchronous set-reset capability
Medium-speed operation: 16 MHz (typical) clock toggle rate at 10-V supply
Standardized symmetrical output characteristics
Maximum input current of 1-μA at 18 V over the full package temperature range
