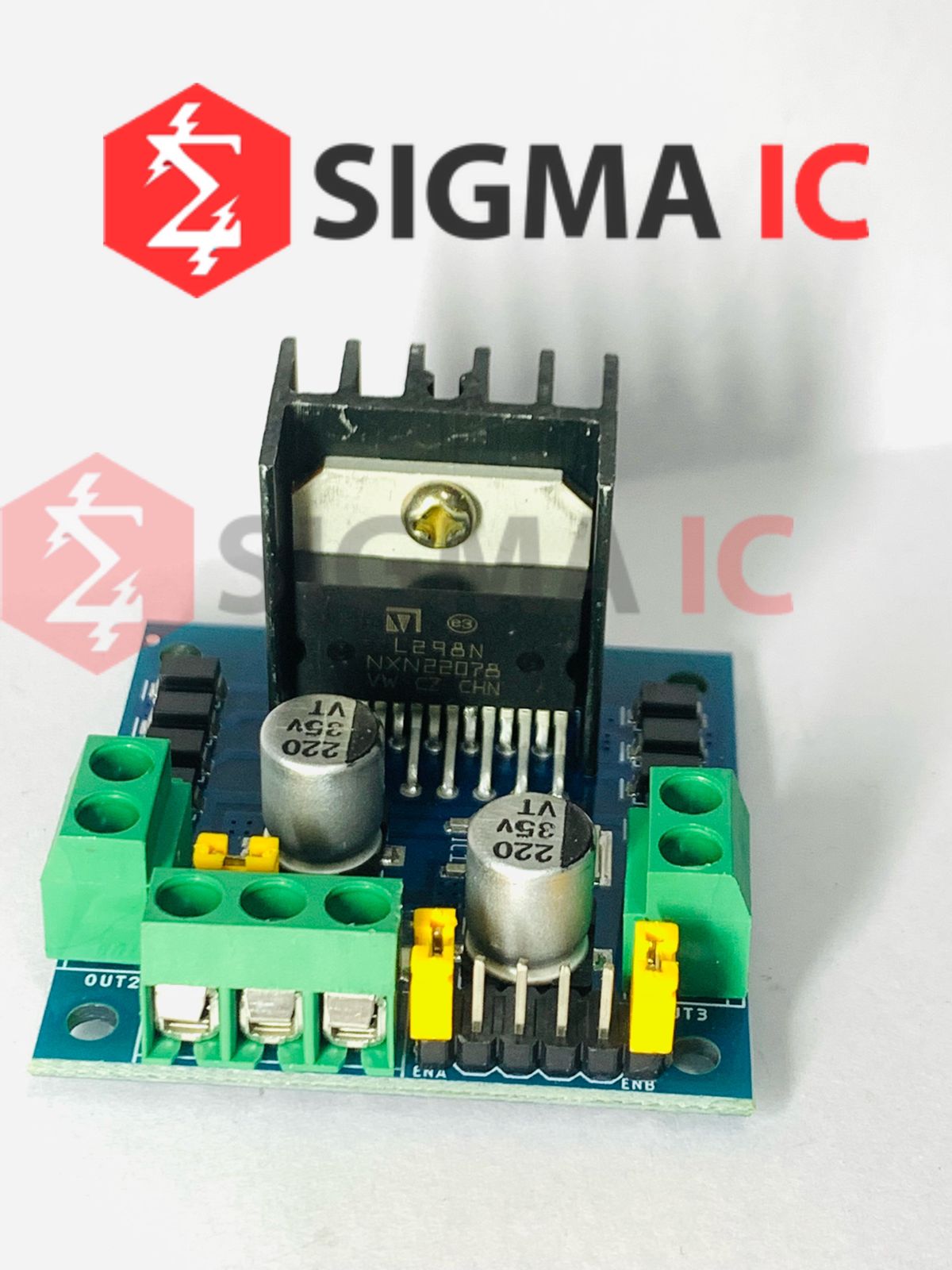

L298N Motor Driver Module is a high power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.
Features & Specifications
- Driver Model: L298N 2A
- Driver Chip: Double H Bridge L298N
- Motor Supply Voltage (Maximum): 46V
- Motor Supply Current (Maximum): 2A
- Logic Voltage: 5V
- Driver Voltage: 5-35V
- Driver Current:2A
- Logical Current:0-36mA
- Maximum Power (W): 25W
- Current Sense for each motor
- Heatsink for better performance
- Power-On LED indicator
Non-returnable
Out of stock
₹150.00
Product Details
Product Details
Product Details
L298N Module Pinout Configuration
Pin Name | Description |
IN1 & IN2 | Motor A input pins. Used to control the spinning direction of Motor A |
IN3 & IN4 | Motor B input pins. Used to control the spinning direction of Motor B |
ENA | Enables PWM signal for Motor A |
ENB | Enables PWM signal for Motor B |
OUT1 & OUT2 | Output pins of Motor A |
OUT3 & OUT4 | Output pins of Motor B |
12V | 12V input from DC power Source |
5V | Supplies power for the switching logic circuitry inside L298N IC |
GND | Ground pin |
