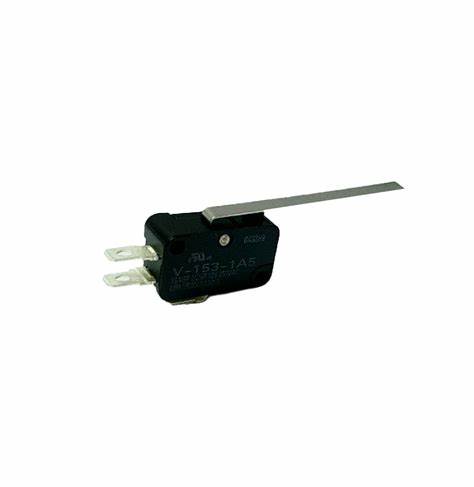

The V-153 micro switch, particularly the V-153-1C25 model from Omron, is a versatile and reliable component used in various applications. Here are some common uses:
- Household Appliances: Often found in devices like microwaves, washing machines, and refrigerators to detect door positions or control internal mechanisms.
- Industrial Equipment: Used in machinery for position detection, safety interlocks, and control systems.
- Automotive: Employed in vehicles for functions such as detecting the position of doors, pedals, and other moving parts.
- Consumer Electronics: Utilized in devices like printers and vending machines for detecting paper jams or product dispensing.
Non-returnable
₹40.00
Product Details
Product Details
Product Details
The V-153-1C25 micro switch by Omron is a snap-action switch known for its high reliability and long life expectancy. Here are some key features and specifications:
- Type: SPDT (Single Pole Double Throw)
- Current Rating: 15A (AC), 600mA (DC)
- Voltage Rating: 250V (AC), 125V (DC)
- Actuator Type: Lever, Straight
- Mounting Type: Chassis Mount
- Termination Style: Quick Connect - 0.187" (4.7mm)
- Ingress Protection: IP40
- Operating Force: 70gf
- Operating Temperature: -25°C to 80°C
