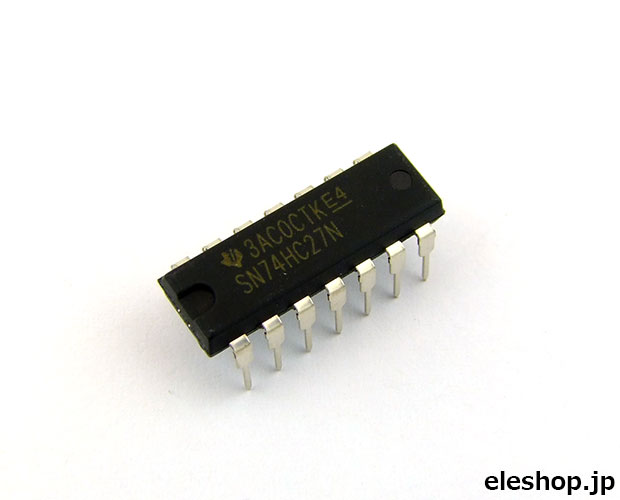

Triple 3-input NOR gate
The 74HC27-Q100; 74HCT27-Q100 is a triple 3-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V CC
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications
Non-returnable
₹30.00
Product Details
Product Details
Product Details
1.Automotive product qualification in accordance with AEC-Q100 (Grade 1)Specified from 40C to +85C and from 40C to +125C Complies with JEDEC standard JESD7A
Input levels:
For 74HC27-Q100: CMOS level
For 74HCT27-Q100: TTL level
ESD protection:
MIL-STD-883, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2 000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0)
