The AGAFIA series was inspired by years of work on many projects; this board is based on the well-known ARM Cortex M0+ and integrates the most exciting addons, such as Mikroe click boards, while remaining Arduino IDE compatible.
You're off to a good start!
- The board color and design may change as part of the improvement and development process.
- The board comes with a header that is not soldered to avoid damage during shipping.
- Version 7 and above supports the STLink-v3minie interface.
Agafia SG0+
₹550.00 - ₹600.00
Product Details
Product Details
Product Details

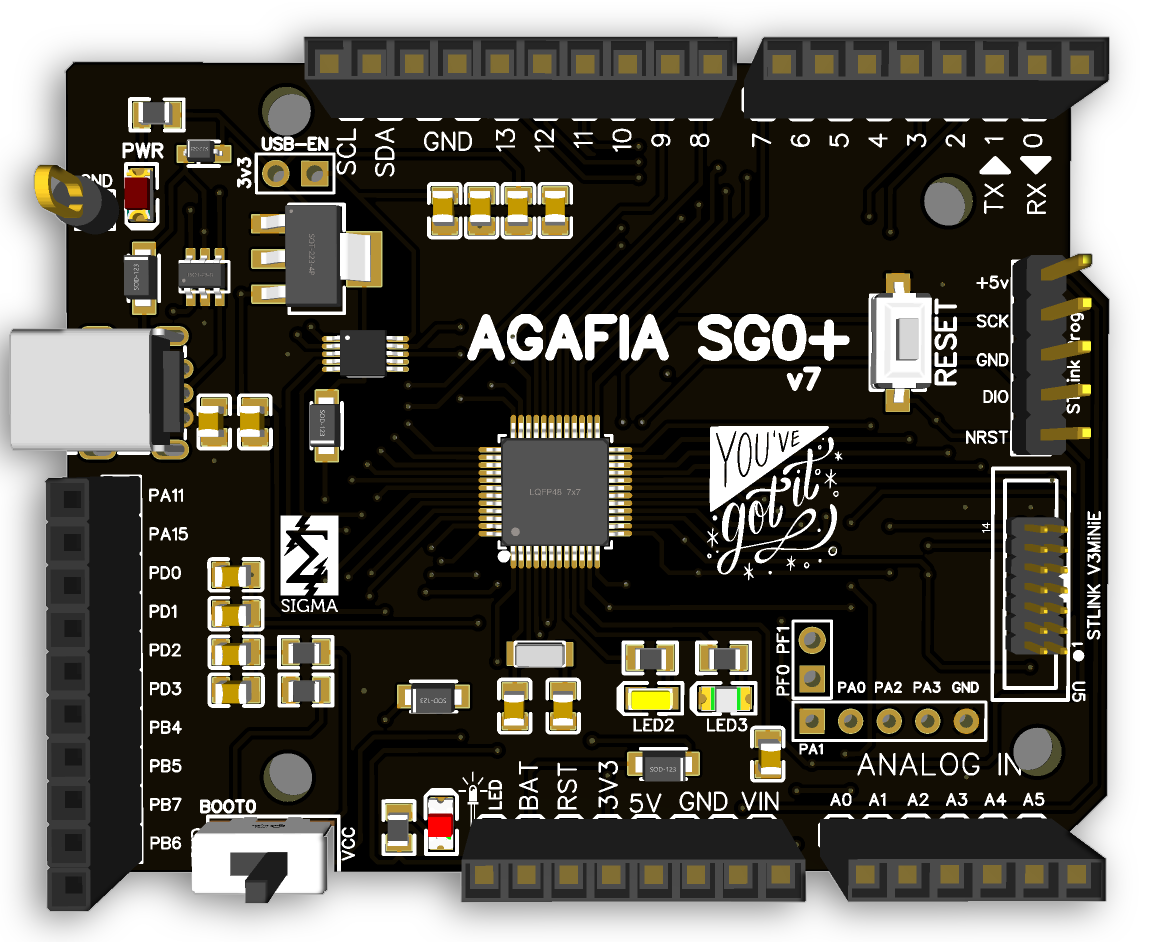

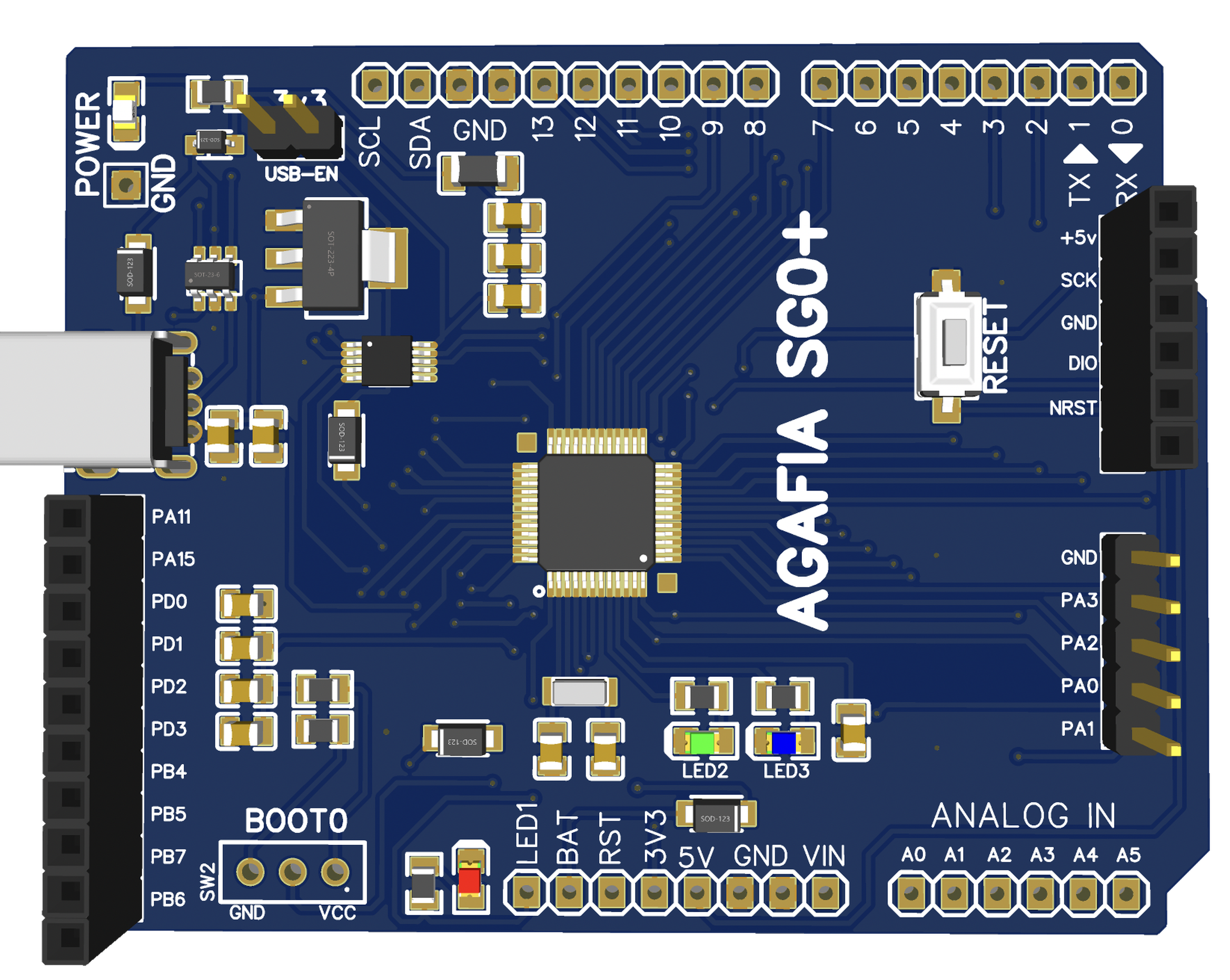

Agafia SG0 is an STM32G07xCB-based microcontroller board. The microcontroller has an Arm 32-bit Cortex-M0+ core and a maximum frequency of 64 MHz It has 33 I/O pins, a micro USB port, a power jack, an SWD header, and a reset button. It also has a mikroBUS™ socket.
Agafia SG0 brings the 48-pin STM32G0 MCU prototype to market. Mostly, 32-pin or 64-pin ST32 MCUs are available for the prototype. Agafia SG0 provides a cost-effective opportunity with enough pins along with advanced features like a 12-bit DAC that are not available on other prototype boards.
What makes it special?
Agafia SG0 is a cost-effective prototype board and packs lots of advanced features. The board comes with a 12-bit DAC and internal RTC with a 32.768 kHz crystal for timing accuracy.
The board has a mikroBUS™ socket that allows you to work with hundreds of sensors provided by Mikroe.
- Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz
- Memories up to 128 KB of Flash memory
- Two 12-bit DACs (G071 Variant)
- CRC calculation unit
- Calendar RTC with alarm and periodic wakeup from Stop, Standby, or Shutdown
- Development support: serial wire debug (SWD)
- 96-bit unique ID
| MCU | STM32G071CBT6 |
|---|---|
| Frequency | Up to 64 Mhz |
| RTC | 32.768 kHz |
| Operating Voltage | 3.3v |
| input voltage | 5V~17V |
| analog in pins | 6 (up to 10) |
| flash memory | 128Kbytes |
| SRAM | 36 Kbytes |
| LED_BUILTIN/LED1 | PC13 |
| LED2 | PF1 |
| LED3 | PF0 |
