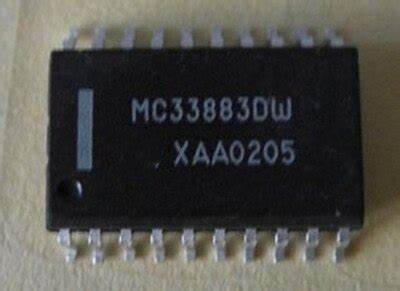

The 33883 is an H-bridge gate driver (also known as a full-bridge pre-driver) IC with integrated charge pump and independent high and low side gate driver channels.
Non-returnable
₹250.00
Product Details
Product Details
Product Details
Features:-
- Operating Voltage Range: VCC from 5.5 V to 55 V, and VCC2 from 5.5 V to 28 V.
- Gate Driver Current: Can source and sink up to 1.0 A peak current pulses.
- Charge Pump: Built-in high side charge pump.
- Compatibility: CMOS / LSTTL compatible I/O.
- Protection Features: Under-voltage lockout (UVLO) and over-voltage lockout (OVLO).
- Sleep Mode: Global enable with less than 10 μA sleep mode.
- PWM Support: Supports pulse-width modulation (PWM) up to 100 kHz.
